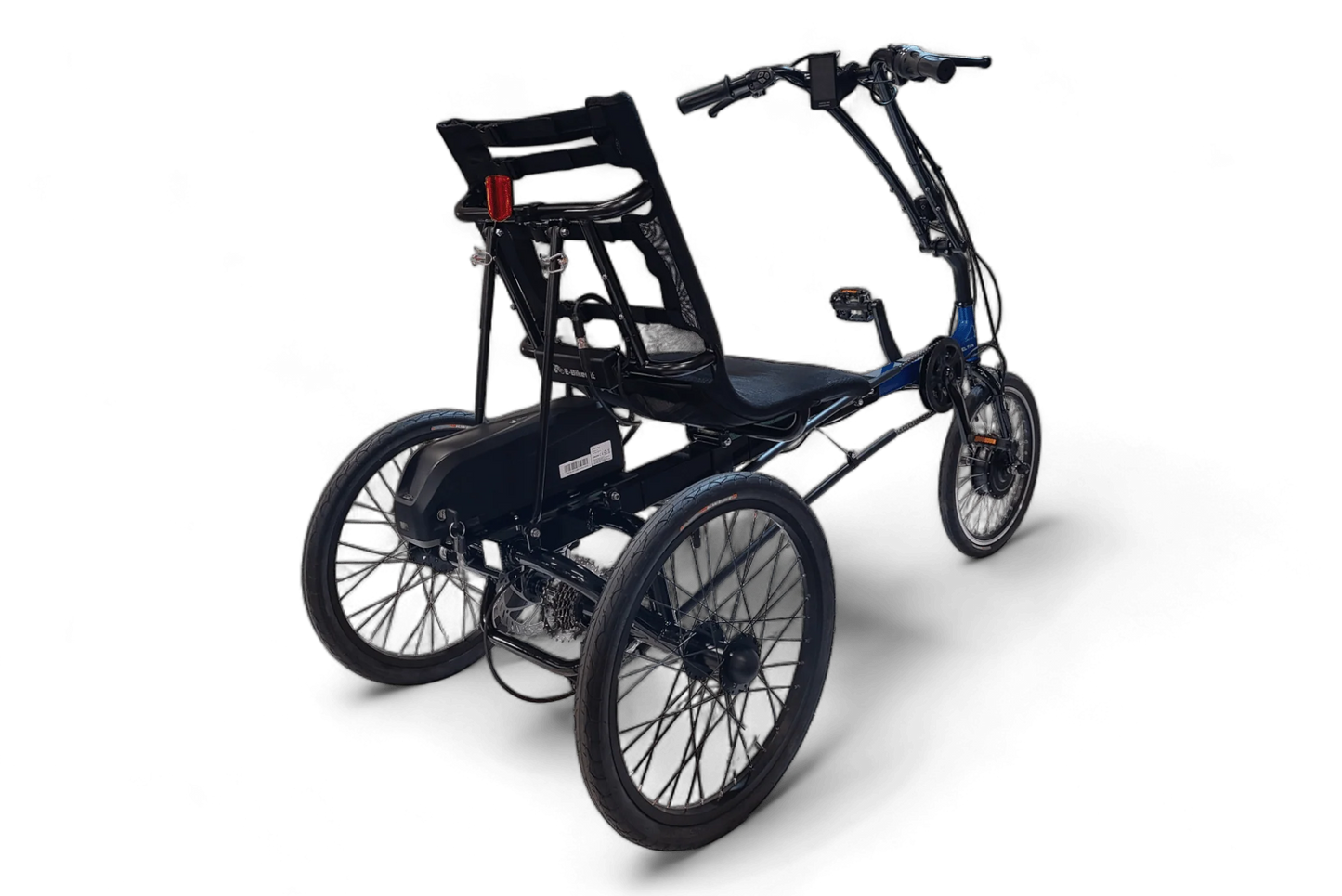

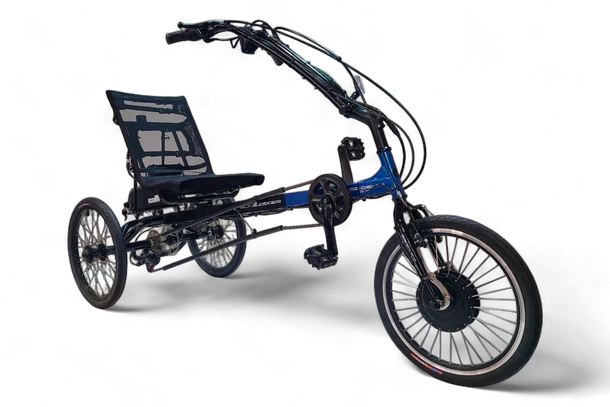

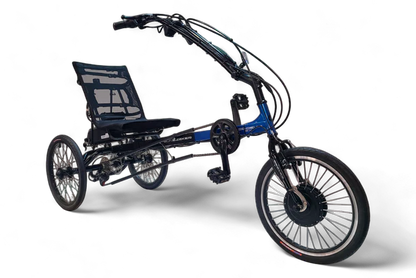

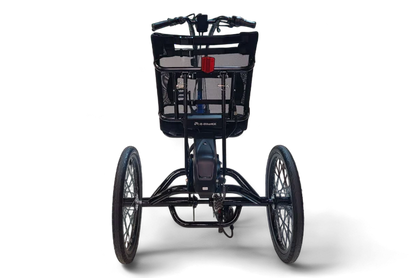

Eco-Delta Electric Conversion System – 48V 15Ah Battery

• Designed specifically for the Sun Eco-Delta SX
• Complete SINET™ front-wheel electric conversion system with 48V 15Ah battery included
• 500W nominal front hub motor
• 100 mm front dropout configuration
• Two torque arms included and required
• Choose Cadence Sensor or Bottom Bracket Torque Sensor
• 3.5" full-color SINET™ LCD with USB charging port, diagnostics, and programming
• Eco-Delta-specific underseat battery mount included

A purpose-built electric conversion system engineered specifically for the Sun Eco-Delta SX, delivering smooth front-wheel assist, predictable low-speed performance, and current-generation SINET™ control.

Eco-Delta Electric Conversion System – 48V 15Ah Battery

The current-generation E-BikeKit™ Eco-Delta SX Conversion System uses the latest SINET™ platform with a 500W nominal front hub motor, integrated sine-wave controller, full-color LCD, throttle-on-demand, locking e-brake levers, and your choice of cadence or torque-sensing pedal assist.

The front-wheel conversion is configured specifically for the Eco-Delta SX platform and its 100 mm front dropouts, leaving the existing rear axle and drivetrain unchanged while adding smooth, controlled electric assistance.

Two torque arms are included and both are required for this application.

The included 48V 15Ah lithium-ion battery slides into the SINET™ battery/controller cradle. Eco-Delta-specific mounting hardware provides a secure underseat battery location for balanced handling and a clean installation.

Who is this system for? Eco-Delta SX riders who want smooth electric assist, easy handling, and dependable performance for everyday riding, errands, and recreation. The total system load limit is approximately 300 lbs including trike, rider, and cargo.

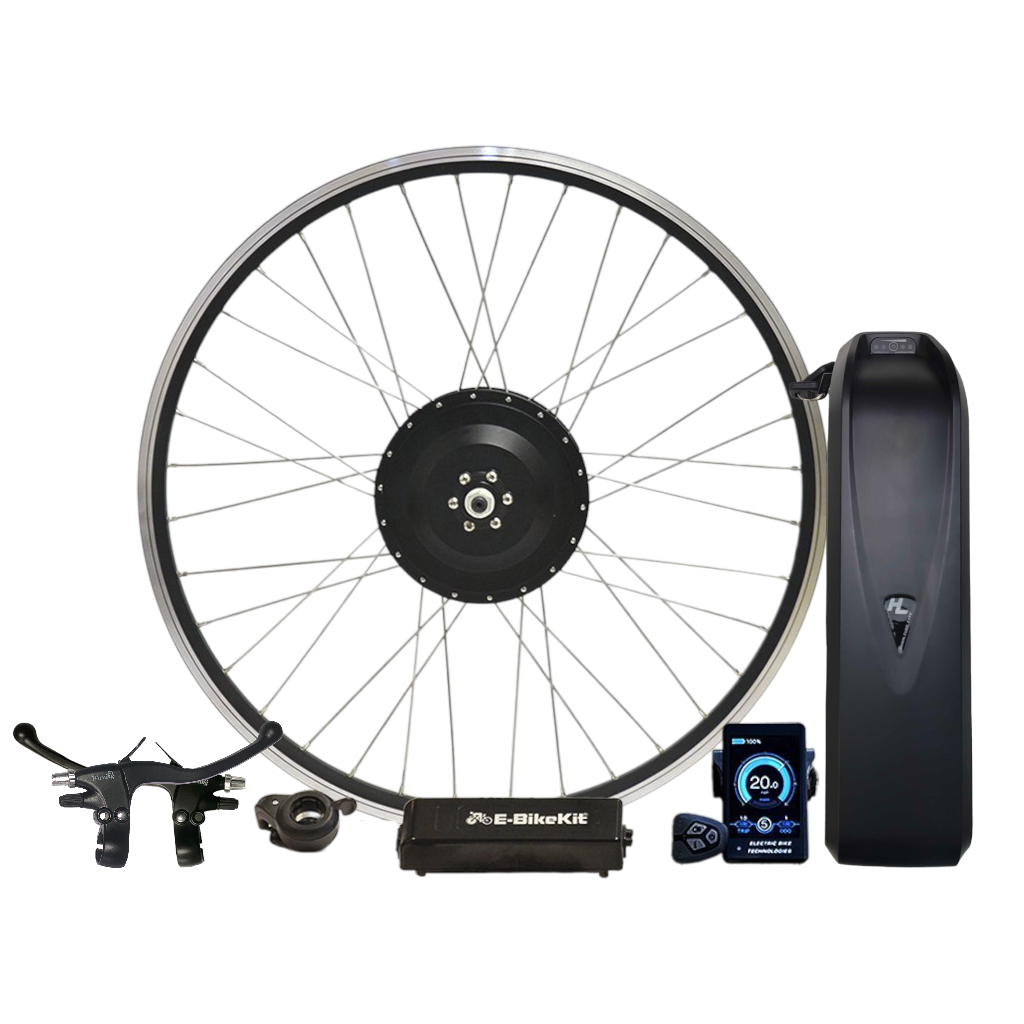

• USA hand-built Eco-Delta front motor wheel
• 500W nominal front hub motor
• 48V 15Ah lithium-ion battery
• Integrated SINET™ sine-wave controller housed in the battery cradle
• SINET™ battery/controller cradle
• 3A smart charger
• SINET™ 3.5" full-color LCD with USB charging port
• SINET™ component wiring harness
• Thumb throttle
• Left and right locking e-brake levers with motor cutoff

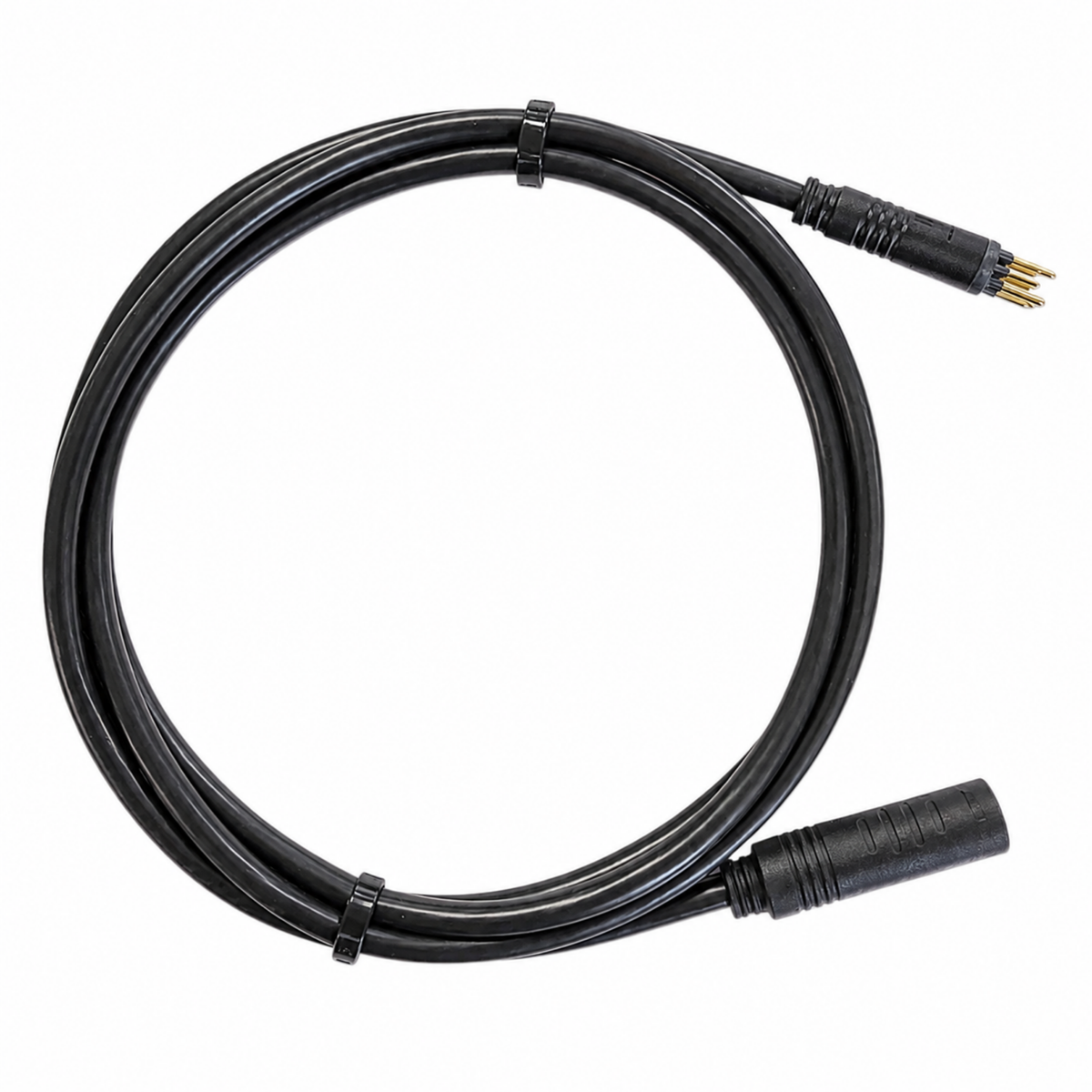

• Motor cable
• Pedal-assist extension cable
• Two torque arms — both required for this application

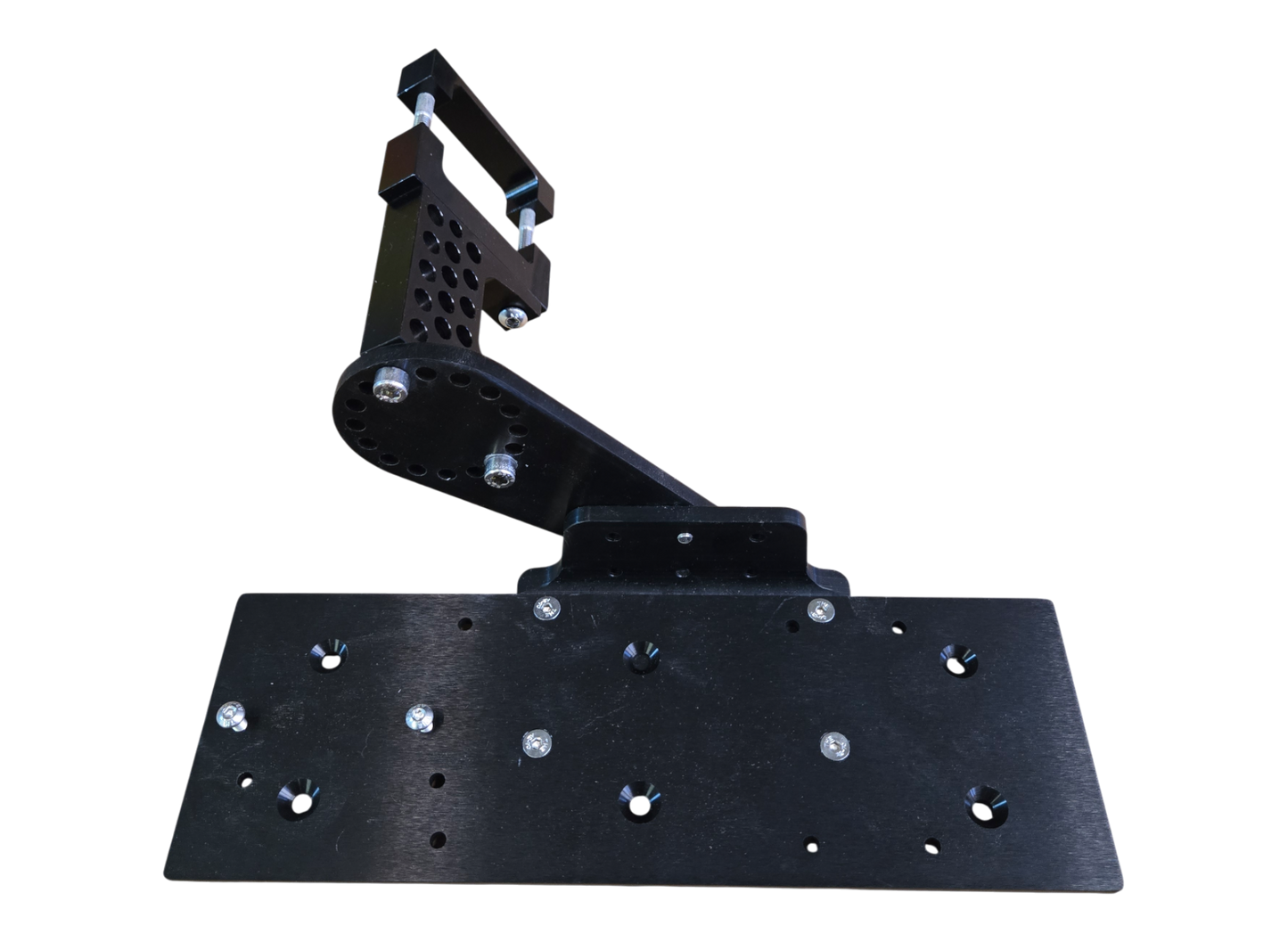

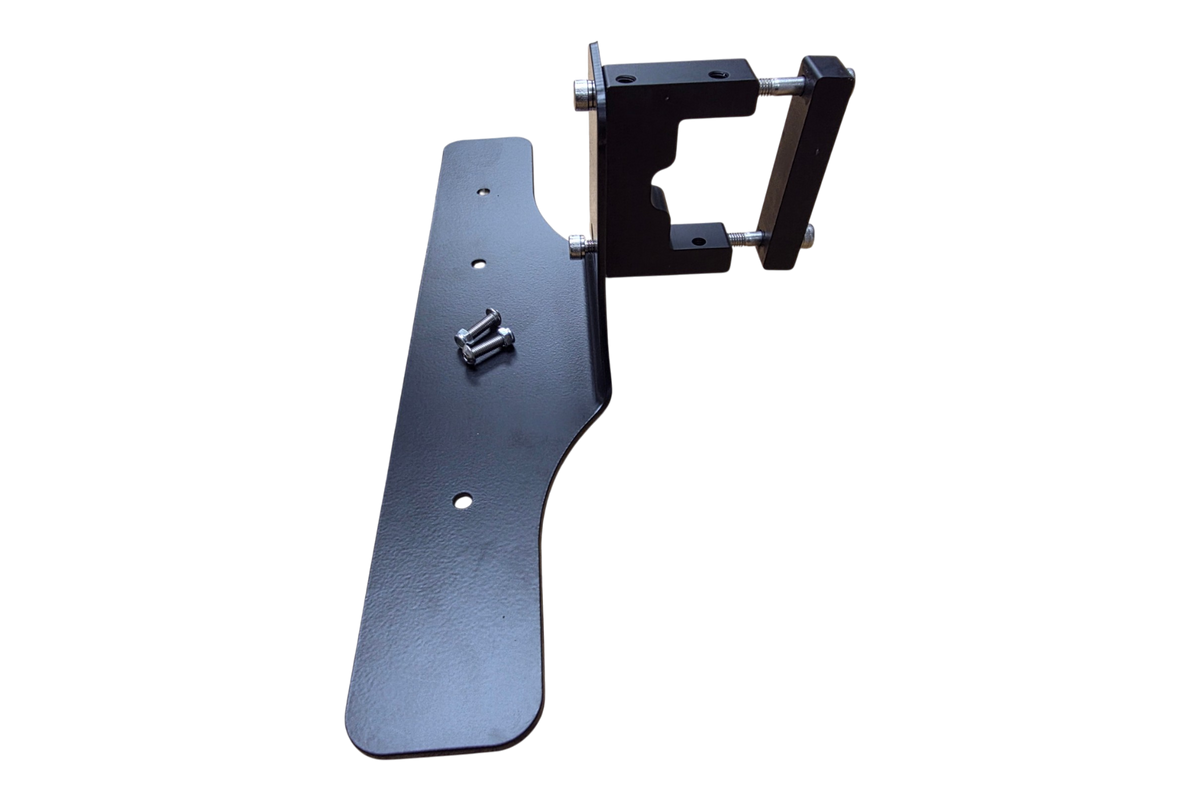

• Eco-Delta-specific underseat battery mounting tray/hardware
• Washers, zip ties, and required conversion-system hardware

Your pedal-assist selection determines the sensor included:

• Cadence Sensor: External cadence sensor and magnet disc for straightforward pedal-assist operation
• Bottom Bracket Torque Sensor: SINET™ 68 mm square-taper torque-sensing bottom bracket with required SINET™ extension cable

Cadence Sensor

The cadence sensor detects crank rotation and activates pedal assistance according to the assist level selected on the LCD. It is the simpler installation option for most conversions.

• External cadence-sensing system
• Detects crank rotation
• Does not measure rider force
• Simpler installation

Bottom Bracket Torque Sensor

The optional SINET™ bottom bracket torque sensor measures rider effort and provides motor assistance in proportion to how hard you pedal, creating a smoother and more natural riding feel.

• 68 mm square-taper bottom bracket
• Required SINET™ extension cable included
• Measures rider pedaling force
• Provides smooth, proportional assistance
• Requires compatible 68 mm square-taper bottom bracket fitment
• Installation requires a protected 3/8-inch cable-routing hole through the bottom bracket shell

Which should you choose? Cadence sensing is simpler to install and provides dependable traditional pedal assist. Torque sensing provides a more natural, proportional response but requires compatible bottom-bracket fitment and a more involved installation.

The SINET™ Bottom Bracket Torque Sensor provides smooth, proportional pedal assist by measuring how much force you apply to the pedals. It provides a more natural riding feel than traditional cadence-only pedal assist, but installation is more involved.

Before selecting the torque sensor, please understand the installation requirements:

• Your bicycle or tricycle must have a compatible 68 mm bottom bracket shell
• The torque sensor is designed for use with square-taper cranks
• Both crank arms and the existing bottom bracket must be removed
• A 3/8-inch cable-routing hole must be drilled through the bottom bracket shell
• The torque-sensor cable is routed through the 3/8-inch opening
• The supplied rubber grommet seats in the opening to protect the cable and provide a clean finished installation
• Proper crank and bottom-bracket removal tools are required

Can I install the torque sensor myself?
Yes. If you are comfortable removing crank arms and a bicycle bottom bracket, installing a replacement bottom bracket, drilling the required 3/8-inch cable-routing hole, and completing the rest of the conversion, this installation can be performed by an experienced DIY installer.

We recommend reviewing the installation requirements and watching the installation video below before choosing the torque-sensor option so you can decide whether this is a job you are comfortable performing yourself.

Torque Sensor Installation Video

Watch the complete installation process for the SINET™ 68 mm square-taper bottom bracket torque sensor, including crank and bottom-bracket removal, drilling the 3/8-inch cable-routing hole, routing the sensor cable, installing the torque sensor, and seating the protective grommet.

Watch the SINET™ Torque Sensor Installation Video on YouTube →

Important: This video demonstrates installation on a compatible 68 mm square-taper bottom bracket. Some traditional upright tricycles use a one-piece crank and require additional crank-conversion components before the SINET™ torque sensor can be installed.

Prefer a simpler DIY installation?
Choose the Cadence Sensor. It provides dependable pedal assist without replacing the bottom bracket or drilling a cable-routing hole.

Want a Shop to Handle the Installation?

If you would rather have the conversion professionally installed, start with the E-BikeKit Dealer Locator. Enter your ZIP code to find participating dealers near you, then contact the shop directly to confirm installation availability.

Find an E-BikeKit Dealer Near You →

No E-BikeKit dealer nearby? Contact a local bicycle shop and ask whether they are willing to install an electric bike conversion system. Give the shop our contact information and have them call us directly. We can quickly help them get set up as an E-BikeKit dealer, review the system with them, and provide technical support for your conversion.

If you find a local shop that is interested but would prefer that we contact them, contact E-BikeKit and provide the shop's information. We can reach out and help get the process started.

Questions before ordering? Call E-BikeKit at 1-866-882-3245, Monday–Friday, 9am–5pm EST, or email support@ebikekit.com.

• Quiet, efficient sine-wave motor control
• Integrated controller housed in the battery cradle
• 3.5" full-color LCD with USB charging port
• Matched waterproof electrical connectors
• Cadence and torque-sensing pedal-assist compatibility
• Throttle-on-demand
• Motor cutoff through both locking e-brake levers
• Cleaner installation with fewer external components

• 3.5" full-color display
• USB charging port
• Battery voltage and level display
• Current speed
• Trip meter and odometer
• Pedal-assist level selection
• Walk-assist mode
• Error diagnostics
• Advanced programming menu

Watch the video below for an overview of the SINET™ LCD, including initial setup, programming, display operation, and commonly used system settings.

Watch the SINET™ LCD Programming Guide on YouTube

Download the SINET™ LCD Quick-Start Guide (PDF)

• Application: Sun Eco-Delta SX
• System Type: Model-specific front-wheel electric conversion system
• Nominal Motor Power: 500W
• System Voltage: 48V
• Motor Type: Brushless front hub motor
• Front Dropout Requirement: 100 mm
• Torque Arms: Two included; both required
• Controller: Integrated SINET™ sine-wave controller housed in battery cradle
• Battery: 48V 15Ah lithium-ion battery included
• Charger: 3A smart charger included
• Display: SINET™ 3.5" full-color LCD with USB charging port
• Throttle: Thumb throttle included
• Pedal Assist: Cadence Sensor or 68 mm Bottom Bracket Torque Sensor
• Total System Load Limit: Approximately 300 lbs including trike, rider, and cargo
• Wheel Build: USA hand-built

This system includes the current E-BikeKit 48V 15Ah lithium-ion battery, integrated SINET™ controller cradle, matching 3A charger, and the Eco-Delta-specific underseat battery mounting tray and hardware.

• Nominal Voltage: 48V
• Capacity: 15Ah
• Energy: Approximately 720Wh
• Cell Configuration: 21700 cells, 13S3P
• Maximum Continuous Discharge: 30A
• BMS Protection Current: 30A
• Maximum Charge Voltage: 54.6V
• BMS Low-Voltage Protection: 36V
• Battery-to-Cradle Interface: Four-blade contact system
• Controller: Integrated into battery cradle
• Estimated Range: Approximately 20–40 miles depending on rider weight, terrain, speed, pedal input, assist level, temperature, and total load
• Charger: 3A smart charger included
• Charge Time: Approximately 5 hours
• Expected Life: Approximately 400–500 charge cycles

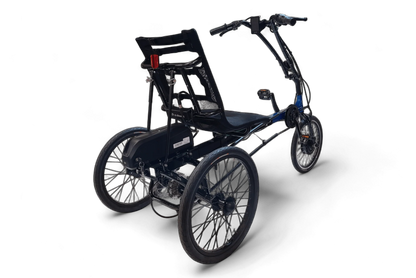

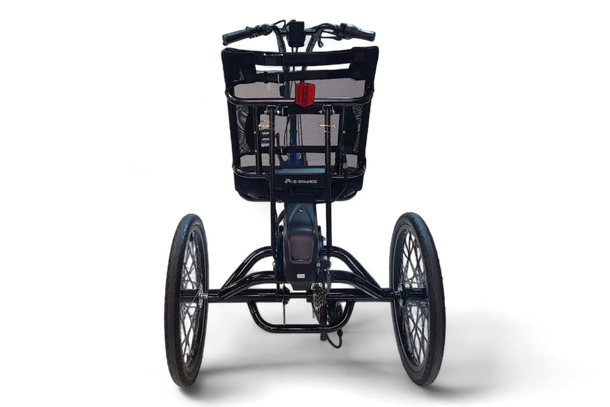

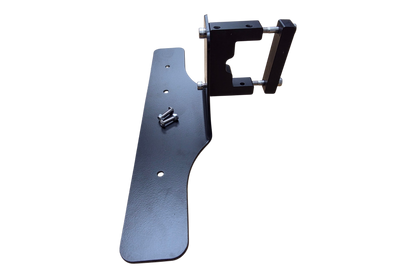

The Eco-Delta mounting system positions the battery/controller cradle securely under the seat for balanced weight distribution and a clean installation.

No additional universal battery mounting hardware is required when using the supplied Eco-Delta mounting system as intended.

View the 48V 15Ah Battery Dimensional Drawing (PDF)

This conversion system is configured specifically for the Sun Eco-Delta SX. The supplied front motor wheel, underseat battery mounting hardware, and conversion components are selected around the Eco-Delta platform.

Before ordering, confirm:

• You have the compatible Sun Eco-Delta SX configuration
• The front fork and 100 mm dropouts are in safe operating condition
• The underseat mounting area is available for the supplied battery mounting system
• You have a compatible 68 mm square-taper bottom bracket if selecting the torque sensor

Important: Both supplied torque arms are required for this front-wheel application.

If you are unsure whether your Eco-Delta configuration is compatible, contact E-BikeKit before ordering.

This is a model-specific conversion system, but installation still requires mechanical bicycle work and proper electrical-component mounting and routing.

• Install the Eco-Delta-specific front motor wheel
• Install both supplied torque arms and properly secure the axle hardware
• Install the Eco-Delta-specific underseat battery mounting tray/hardware
• Secure the SINET™ battery/controller cradle to the mounting system
• Install the 48V 15Ah battery into the cradle
• Install the SINET™ LCD, thumb throttle, and locking e-brake levers
• Install the selected pedal-assist sensor
• Route all wiring away from steering components, tires, chain, and other moving parts
• Verify brake cutoffs, throttle operation, pedal assist, wheel clearance, steering movement, and display settings before riding

Professional bicycle-shop installation is recommended if you are not experienced with cranksets, bottom brackets, front hub-motor wheels, torque arms, battery mounting, and electric conversion systems.

Learn more: Top 25 Frequently Asked Questions

Questions? Call us toll-free at 1-866-882-3245, Monday–Friday, 9am–5pm EST, or email support@ebikekit.com.

Battery shipping: Lithium-ion batteries ship separately via FedEx Hazmat and may require a delivery signature. It is normal for the conversion system, battery, charger, or mounting hardware to arrive in multiple shipments or on different days.
