Description

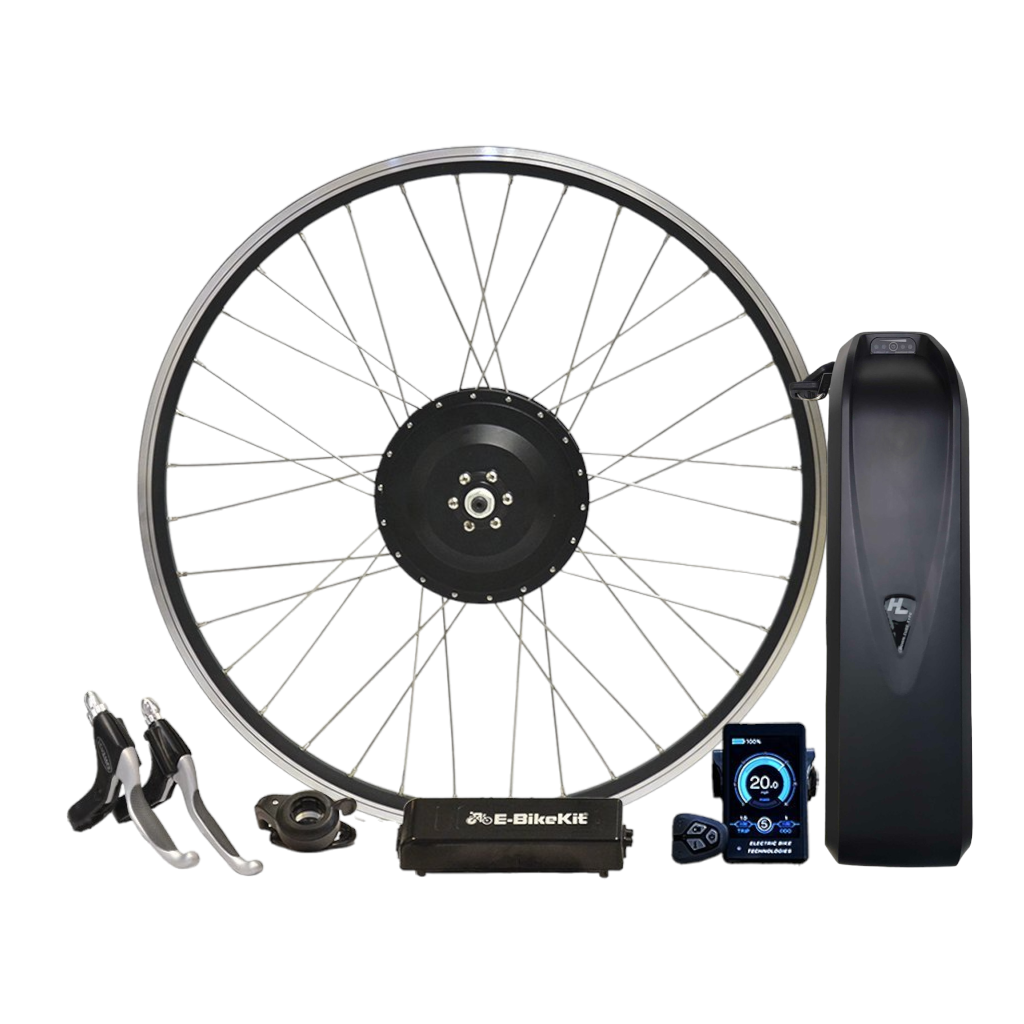

E-BikeKit Front 500w Geared Hub Motor Conversion Kit
with 48-Volt Li-ion Battery Pack and Charger.
The E-BikeKit 500-1000w geared conversion kit is powered by an internal 5:1 planetary gear hub motor with a clutch. The clutch in the geared motor offers zero drag when pedaling and not engaging battery power. This motor is more efficient, resulting in increased range (especially with "start/stop" riding), has more starting torque, and has greater hill-climbing ability than a direct-drive motor of equal power rating. The motor is also smaller in diameter for increased stealth and 3.4 lbs. lighter than the 500w direct-drive.
Who's it for? This premium electric bike conversion kit system is for those that want the best of the best in performance, efficiency, weight, stealth, and speed. The top speed is 26 mph! There is a 300 lbs. total load limit so if you plan on more than that, look to a heavy-duty system.
Learn More: Top 25 FAQ | Front vs Rear Wheel | Compatibility | Pedal Assist Compatibility
Note: Our kits include parts to fit a wide variety of bikes, but do not fit every bike without modification or extra parts. Our representatives are available to help with compatibility questions and make recommendations on additional parts that you may need.
Helpful Resources: Helpful Videos | Owner's Manuals
Questions? Call us toll-free at 1-866-882-3245 and an experienced professional can assist you. Monday – Friday 9 am - 5 pm EST. Outside of business hours get help fast via e-mail.
Shipping Note: Li-ion batteries are shipped separately from electric bike kits. Li-ion battery packs are shipped via FedEx Hazmat and are require a signature for delivery. You may receive your kit, battery, and possibly the battery rack (if applicable), on separate days.
Motor Specs
Brand: Electric Bike Technologies, Inc.
Type: Internally Geared (brushless, disc brake compatible)
Power: 500w Nominal / > 1000 @48v
Max Torque: 84N-m @48v
Max RPM: 320 @48v
Cable: 8" Axle Exit, 3-Phase / 5 Hall Effect
Connector: Round 8-Pin 13/32" (10.4mm)
Weight: 9.4 lbs. (4.26 kg)
Warranty: 1 Year (up to 48v - 300 lbs. max load)
Battery Specs
Range: 15-30 Miles (Based on riders weight, input and terrain contingent)
Charging Time: 15Ah Pack = 5 Hours / 3Amp Charger
Nominal Voltage: 48v
Nominal Capacity: 15Ah (0.2C)
Battery Energy: 720Wh approx.
Dimensions: 14in x 3.5in x 5in (356mm x 89mm x 127mm) approx.
Total Weight: 10.125 lbs (4.6 kg)
Cell Assembly: 18650-3.6v-13S4P
Life Cycles: 500-800 Cycles
Max. Continuous Discharge: 16A
BMS Protection Current: 20A
Discharge Cut-Off Voltage: 37.5v
Max Charge Voltage: 54.6v
Inner Resistance: < = 230mΩ
Operation Temperature Range: Charge: 0°C – 113°F / Discharge: -68°F – 140°F
Storage Temperature: 0°C – 104°F (Extended Storage: 59°F – 77°F)
Battery Case Material: Plastic
Assembled Pack Certificates: UN38.3; IEC 62133; SDS
Limited Warranty: 1 Year
Manufacturer: Electric Bike Technologies, Inc.
Assembled Pack Certificates: UN38.3; MSDS; RoHS; SGS
Includes
Every E-BikeKit conversion kit comes with all of the parts you'll need for your conversion.
1 x USA Hand-Built Wheel w/ Disc-Brake Compatible Hub Motor
1 x 48V Compatible 22Amp 12FET Controller
1 x Programmable LCD Dashboard
1 x PAS 12-Magnet Split Disc
1 x PAS Sensor Left Side Mount (right side mount, by request only)
1 x Thumb or Split-Twist Throttle
1 x Left and Right E-Brake Levers
1 x Motor Cable
1 x Accessory Cable
1 x Battery Wire Harness (kits w/ out batteries only)
1 x Owner's Manual (an online PDF)
**Zip Ties, C-Washers, and Torque Arms in Every Kit!
